DELIVERY: Pentair Intelliflo Pumps are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Pentair Intelliflo Pumps can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

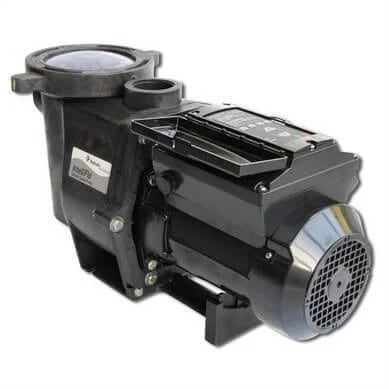

Pentair Intelliflo VSD built with Sta-Rite 5P6R wet end, reduces your running costs offering payback in first two years. Dramatic reduction in noise and the fact that the Pentair Intelliflo reduces your running cost so much, paying for itself in less than 3 years on a standard extended summer pool to less than 2 years if used on a small commercial, public pool or frequently used domestic in-door pool. Pentair Intelliflo has an extremely low operation noise and high indirect impact in the reduction of CO2 emissions.

Pentair have added built-in features to protect the Intelliflo from prime flow impedance, over heating, freezing and under or over voltage. Pentair Intelliflo is an Eco Efficent pump that will slash you electricity bills by 30 - 90%. Manufactured to be multi-purpose it can be used on several applications, the first being pool filtration, another being used to boost power for cleaning as well as creating water features or waterfalls in the pool and also reducing the maintenance cost of your swimming pool.

Pentair Intelliflo is the new standard of Swimming Pool Pumps. Pentair Intelliflo monitors and controls and adjusts to a range of demands and different pool conditions. The Intelliflo is a variable speed pump which Watts/Amps varie according to the pressure and flow of your swimming pool. Pentair have made built-in protections to the Interlliflo being loss of prime flow impedance, thermal overload, freezing protection and under and over voltage. Pentair Intelliflo is a Eco Efficent product that will reduce energy consumption by 30 - 90%. Intelliflo is manifactured to be versatile, on its own Pentair Intelliflo can be used for several applications (filtration, cleaning, waterfalls, etc.) reducing the maintenance cost of your swimming pool. The noise level on the Pentair Intelliflo is unnoticed when operating, it is quiet as human whisper.

Pentair Intelliflo Advantages Add More Value For Money!

• Thanks to its permanent magnet motor and the fact that it is totally enclosed fan cooled (TEFC) design, which means there are no touching parts rubbing against each other. This means the pentair pump is the quietest pump on the planetever made. At typical speeds you can hardly hear it's operating
• IntelliFlo permanent magnet motor produces far less heat and vibration that the standard self priming induction motor pumps. This not only results in less strain & wear on the components of the pump, but also on other equipment. Furthermore on investigating the main faults we regular hear with the induction pump it would be overheating, freezing and voltage irregularities. The intelliflo pumps has a motor that protects itself from damage by adjusting it's voltage variations as well as reducing its speed to prevent motor over heating. The result is you can expect a dramatically longer life and even greatre return on your investment.
• The Intelliflo can also adjust to new features and equipment without changing the pump. You can add a solar system or water feature or even change your filter by simply pushing a button to set the optimum speed to operate at the lowest energy use. Your savings are maintained even as your swimming pool system changes
• The Intelliflo has the ability to manage water features by altering the performance of the pump. Want to add height to deck jets or fountains? want to increase the water flow to waterfalls or avanishing edge you simply increase or decrease pump speed with a touch of a button to adjust the demand. You manage the sights and sounds of your back garden retreat while driving energy cost down to new lows

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

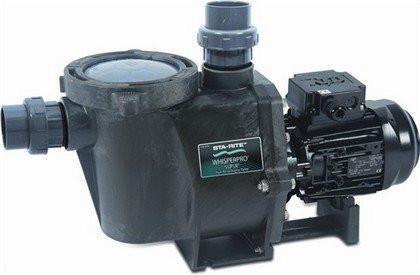

The Sta Rite WhisperPro is the quietest pump available on the swimming pool market. Great for both above ground and in ground Swimming Pools. Reliable and great performing pump ranging from 0.75hp to 3hp

The whisperpro is a direct replacement for the whisperflo. This is a self priming sta-rite pump that has been made for quiet operation.

Sta-Rite WhisperPro is the making of a proprietary hydraulic design which has been refined for over 40years. The Whisperflo is engineered to move the water more efficiently and quietly then other competitive Swimming Pool Pumps. Thanks to the unique design of the FunnelFlo diffuser and a high efficiency impeller that maximizes water flow and energy efficiency. This ensures the quietest of operations. The pre filter comes with an oversized strainer basket which reduces cleaning frequency. The pre filter lid is clear which allows instant inspection. The Whisperflo also delivers the power needed for suction side, pressure side and in floor cleaning systems.

The WhisperPro also comes in Three Phase for this design, please call for this option

DELIVERY: Poolstyle Pump Filter Combos are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Poolstyle Pump Filter Combos can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a Poolstyle Pump Filter Set is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Poolstyle Pump & Filter swimming pool sand filter & pump kits are not self priming so are designed for use on above ground pools only and will provide years of reliable service

Number Of Bags Of Media Sand or Glass Required in Poolstyle Filters

18" Sand Filter - 45kg Sand
20" Sand Filter - 85kg Sand

DELIVERY: Davey Pumps are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Davey Pumps can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

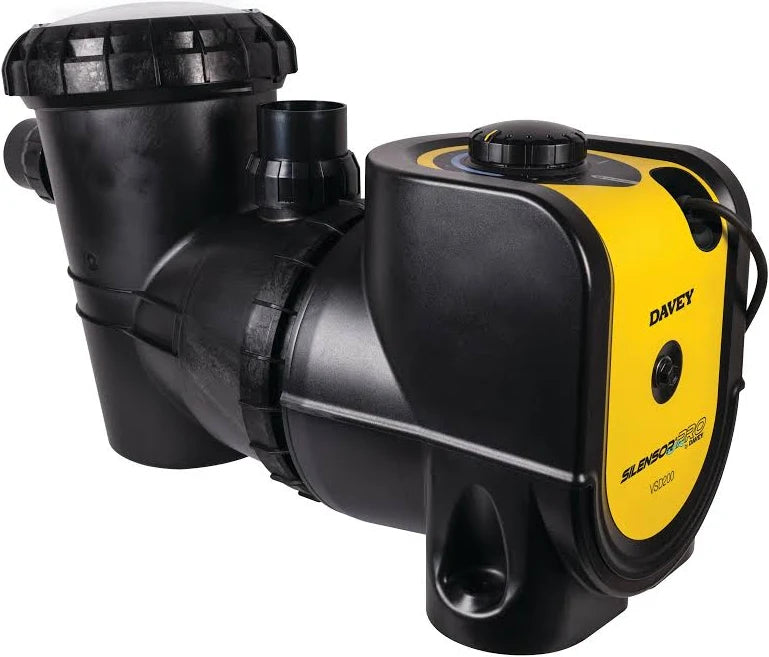

PRODUCT INFO: Davey silensor pro swimming pool pumps are water cooled pumps unique to the pool market. Davey Silensor Pro pumps have a huge extra large 4.5 litre leaf basket and using heat transfer technology they will add heat to you pool through its water cooled system all the time it is running

The 11 settings allow the Davey Pro Silensor swimming pool pump's power output to be easily changed to suit all of your pool filtration requirements, whilst saving you money in running costs.

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

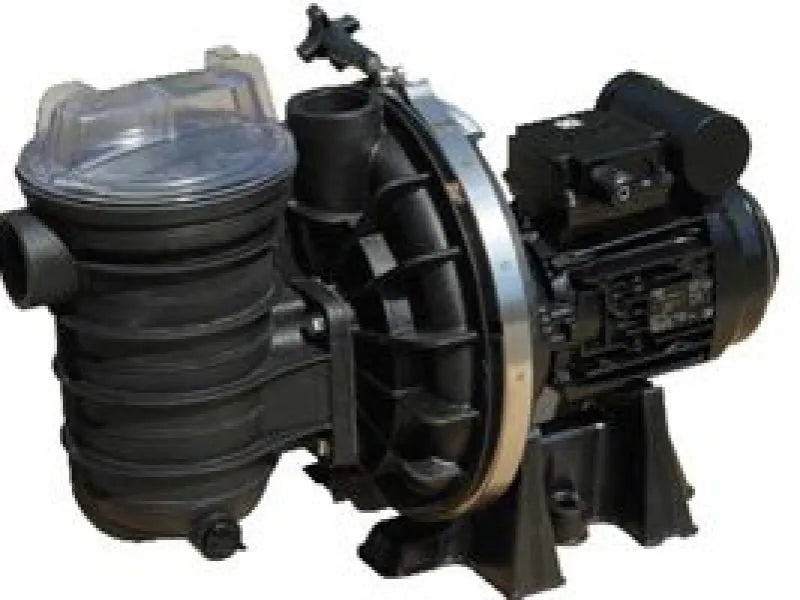

The Sta-Rite 5P2R is the pump most fitted on domestic swimming pools in the UK. Price, reliabilty and quiet running make it THE choice for domestic swimming pools. 3 Year Warranty

Sta-Rite 5P2R swimming pool pump is precision molded of fiberglass reinforced, temperature and corrosion-resistant. This lightweight exceptionally strong thermoplastic is designed for much higher pressure operation than other pool pumps. Unequaled performance means: higher heads to 22, 5 meters and flow rates up to 22m3/h.

The S5P2R series are suitable for water with a salt content up to 0,4% and for water with pH fluctuations (corrosion). The capacity and dimensions are identical to the series 5P2R. Special motor shaft and all inner parts are made from high grade stainless steel or thermoplastic material.

HIGH HEAD IMPELLER - Precision molded of glass filled polycarbonate, it provides unusually smooth water passages for outstanding performance and efficiency

HEAVY DUTY MOTOR - 50 Hz motors are designed for continuous andquiet operation, feature stainless steel shaft, sealed and permanently lubricated bearings: runs cooler for prolonged life under high ambient conditions.

MECHANICAL SEAL - Precision lapped and highly polished carbon ceramic stainless steel construction, it assures maximum drip proof corrosion free protection

STAINLESS STEEL PUMP CHAMP - Easily removed for quick access to all serviceable components

SEE THRU’ TRAP LID - Designed to withstand 4 bar test pressure as well as high vacuum conditions

3 YEAR WARRANTY

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

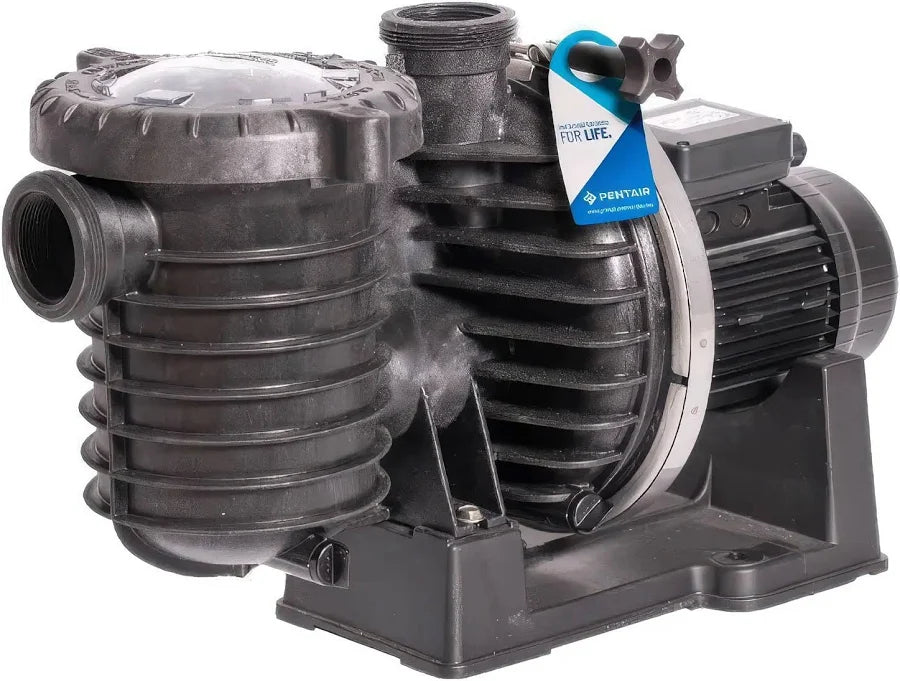

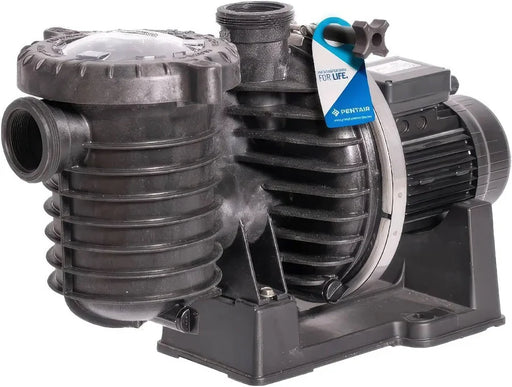

The Sta-Rite Dyna-Glas 5P6R is a self priming rapid swimming pool pump, designed for medium to large swimming pools or any other aquaculture applications. The Sta-Rite 5P6R is the best pump around if you require a very high flow rate and where extra quiet operation is required or preferred.

The Sta-Rite 5P6R is manufactured in Europe, not China like so many pumps and is built to perform for many of years, the motor is built in accordance to the European CE-Standards with IPX5 protection. As standard the Sta-Rite 5P6R comes complete with a high quality glass reinforced thermoplastic construction which is extremely high corrosion free, also included is a cool running shaft which provides a longer life and better wear preventing seal damage from loss of prime.

The Sta-Rite 5P6R is a fast self-priming pump with medium head, sizes available are from 0.75HP through to 3HP with an extra-large integral hair and lint strainer, which can strain out the smaller particles which most pump are unable to. It is easy to service and maintain with an extra-large internal trap.

This pump can self-prime up to 5m above water level giving it a huge advantage for being used away from the Swimming Pool and at higher levels.

DELIVERY: H Filters from Intex are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Type H Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Intex Size H Filter

Intex Filters for Metal Frame Pools & Easy Set Pools should be changed very regularly, in fact Intex suggest every 2 weeks during the Summer. A clean swimming pool filter helps keep your water crystal clear and will mean using fewer chemicals.

Even if an Intex filter is washed out and looks clean the microscopic holes are blocked, making the Intex filter totally useless. A blocked Intex Pool cartridge filter will increase the pressure inside the pump and quickly wear out the motor shortening the lifespan of the pump dramatically.

Replacing the Intex Pool Filters as often as required could be very expensive if you had to buy them at retail prices. At H2oFun we can offer Intex Branded Filters at below trade prices and you do not have to buy in bulk.

designed for use with Intex filter pump item number: 28601/28602

DELIVERY: In-stock items are sent out on a next working day service

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post. A Returns Number must be obtained before sending goods back.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors..

PRODUCT INFO:

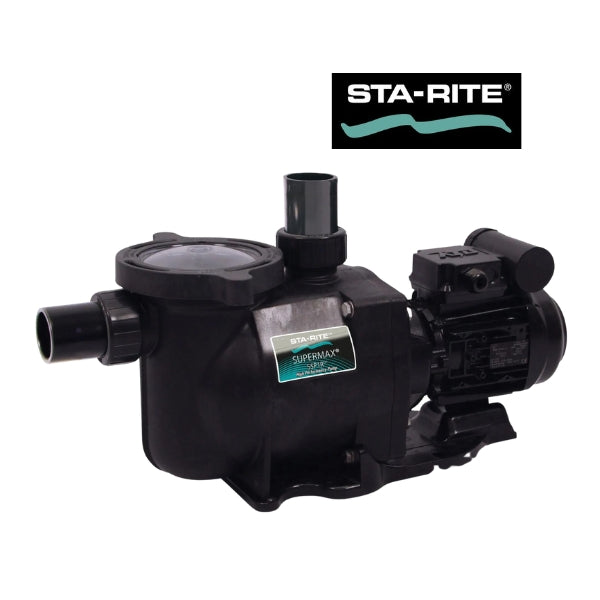

Pentair Superflo Pumps have been replaced with the Supermax S5P1R. The S5P1R pumps are specifically designed to be the best choice for a variety of inground swimming pools. Same features as the superflo with thick walled body parts and a heavy duty 56 square flange motor and a highly engineered hydraulics.

The Pentair Superflo Pump now replaced by the S5P1R one of the world’s most popular swimming pool pumps offering the highest quality at a very affordable price.

The Pentair S5P1R Swimming Pool Pump has a whisper quiet operation due to the internal hydraulic design and the hardwearing, thick walled body is designed for exceptionally heavy usage. The Pentair Superflo Pool Pump is an ideal replacement pump for all inground swimming pools that need a quiet, hard working pump that does not cost the earth. If your swimming pool currently has a Hayward Super Pump fitted the Pentair Superflo  / S5P1R will directly replace it without having to alter any pipework.

The Pentair Pump has a simple Cam & Ramp, quarter-turn, super-sized locking lid. Offering a large easy to remove strainer basket with a lid that needs no tools or poles to open makes the Pentair Superflo a pleasure to own.

S5P1R meets all the criteria for a superior pool, spa or water feature thanks to its PENTEK motor. It's super energy efficient. It's quiet and super easy to maintain. Furthermore, it's designed with innovative materials that will stand up to demanding installation and conditions. Whether you're choosing your first pump or replacing older technology, Superflo is definitely a Super choice.

The Pentair S5P1R in 0.5hp up to 3hp

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery.

PRODUCT INFO:

Triton Side Mount Sand Filter - Complete with sand and pea gravel

DELIVERY: Hayward Booster Pump For Pressure Cleaners are sent out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post. A Returns Number must be obtained before sending goods back.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Hayward Booster Pump For Swimming Pool Pressure Cleaners

Hayward Booster Pump For Pressure Cleaners have been manufactured to be the perfect replacement pump choice for any swimming pool booster pump for pressure cleaners.

Call us on 01322 554 870 if you would like to discuss which pump is suitable for your pool.

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Hurricane Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Hurricane Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Great Giant Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Great Giant Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Giant Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Giant Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Calpeda Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Calpeda Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Columbia Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Columbia Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Aral Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Aral Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Waterco Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Waterco Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Speck Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Speck Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Starite Commercial Pool Pumps, from 3HP upwards but below 5.5HP, is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Starite Commercial Pool Pumps Up To (but not including) 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

We Have Inverter Variable Speed Drives Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Just search our website to find yours or call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery
