DELIVERY: Mega SS Pool Pumps are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Mega SS Pool Pumps can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

SS Flotide Swimming Pool Pumps offer great value. The Flotide SS Pump has been a popular pump for a number of years offering reliability at a low cost.

The Mega SS Pump is made from Aluminium which makes it lightweight. The Mega SS range of Pumps are ideal for small unground and above ground Swimming Pools.

We hold these pool pumps in stock for fast next working day delivery

DELIVERY: Hayward Powerline Pump & Filters are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Hayward Powerline Pump and Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Complete combination kit, using a Hayward Powerline .33hp self priming pump & 16" Filter.

DELIVERY: Hayward Powerline Pump & Filters are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Hayward Powerline Pump and Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Complete combination kit, using a Hayward Powerline .33hp self priming pump & 21" Filter.

DELIVERY: Hayward Powerline Pump & Filters are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Hayward Powerline Pump and Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Complete combination kit, using a Hayward Powerline 0.75p Pump & 21" Filter Combination that will require 4 x 25kg sand or glass media

DELIVERY: Hayward Super Pumps are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Hayward SuperPumps can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Hayward Super Pump For Inground Swimming Pools

Hayward Super Pumps from 0.75hp to 2hp making it available for a huge range of Swimming Pool shapes and sizes. Quiet operating pump which means it will be great for using on in door Swimming Pools.

Hayward Super Pumps are a self-priming Swimming Pool Pump that is made of a PermaGlass XL which is one of the strongest materials for pumps to date. Hayward’s Super Pump series of technologically advanced large-capacity pumps delivers cost-effective, sturdy construction-setting an industry standard for value and excellence. Built for spas and in-ground pools of all sizes and types, each unit contains a super-sized debris basket, large see-through strainer, and exclusive easy-to-service design for added convenience. Comes with a great 2 year warranty

•The heavy-duty high-performance motor includes airflow ventilation for cooler, quieter operation.

•See-through strainer cover allows you to see when the basket requires cleaning.

•Exclusive swing-away handle makes it easy to remove the strainer cover, no tools, and no loose parts.

•110-cubic-inch basket

DELIVERY: Hayward Superpool Pumps are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post. A Returns Number must be obtained before sending goods back.

.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Hayward Superpool II 2 Pump For Inground Pools

Super II„¢ delivers proven operation and excellent reliability in harsh conditions. It provides added performance to pools with smaller, original plumbing.

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery.

PRODUCT INFO:

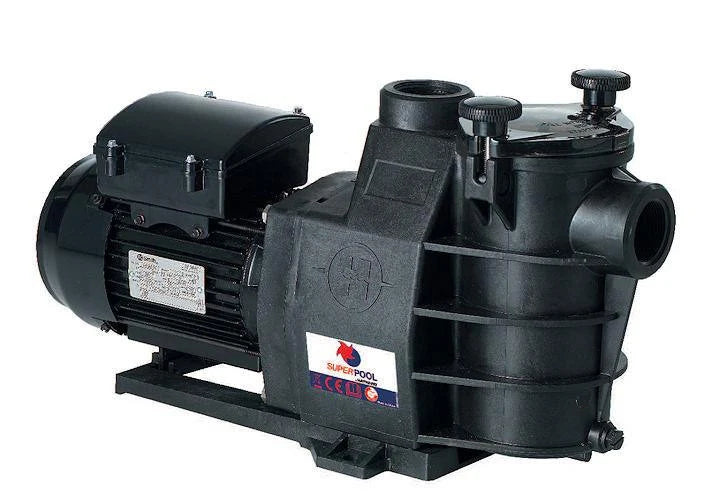

Hayward Superpool pump (Inground Pools)

Hayward Superpool Pumps are self priming and offer amazing value for money. is the new improved version of the Max-Flo and Powerline Plus and has an even higher performance. Suitable for inground pools and spas of all types and sizes, this self-priming pump provides maximum performance with durable construction. The pump is compatible with salt water pools and is a perfect choice for new and existing pool builds.

Hayward Superpool Pumps are suitable for inground pools and aboveground pools. The hayward Superpool pump is self-priming and provides maximum performance with durable construction. The Hayward pump is compatible with salt water pools and is a perfect choice for new and existing pool builds.

DELIVERY: Hydro-fit Pump & Filter Combo's are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Hydro-fit Pump Filter Combo's can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

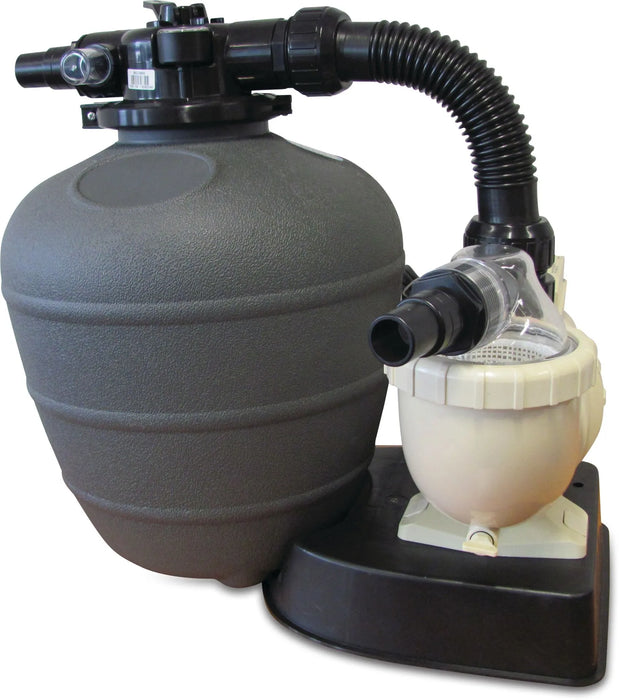

The Hydro-Fit is a swimming pool pump and sand filter set, perfect for intex style pools where better filtration is needed than a cartridge filter can provide

The Hydro-Fit sand filter & pump combo comes with 0.2hp pump. Easy to install with fittings for 1.25" and 1.5" Hose. If you have an Intex pool with grey cuff fittings we have the connectors available to adapt to this pump & sand filter.

using a sand filter will make significant difference in quality of filtration and the 0.2hp pump will enable you to hoover pool waste more easily and with 8 cubic meter per hour flow rate provide a far better water quality when used with correct pool chemicals

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery.

PRODUCT INFO:

Intex Skimmer 28000 is a wall mounted skimmer that fits to Intex Pools with pumps 800 gallon and above.

The Skimmer has fittings for both the Intex Easy Set Pool and the Intex Metal Frame Pools. Using an Intex Skimmer will reduce the amount of debris that goes through your pump and filters.

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery.

PRODUCT INFO:

Intex Pumps & Filters can be used with any wet set above ground swimming pool. Intex Pumps are very easy to install, just simply hook up water inlet and outlet and plug in. The Intex Pumps are held in stock and can be shipped next day, they also come with a 1 year warranty with intex themselves.

Intex Filter Pumps #28638, #28636, #28604  can be used with Intex Wet Set, Easy Set, Metal Frame and Intex Ellipse Pools. The Intex Pumps come with a limited 1 year warranty.

Upgrading your intex filter pump to a higher spec or even to an Intex Sand Filter is especially important if you are looking to add a heat pump or solar domes.

Research shows that intex filter pumps may need replacing 2 or 3 times on an intex pool life time, so therefore we can offer intex branded replacement filter pumps for a fraction of the retail price. Intex Filter Pump does not keep the floor or walls clean, they will only keep the water clean from suspended water particles and circulate the water for the chemical to work. To clean the floor and walls a vacuum is needed.

DELIVERY: Intex Size A Filters are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Intex Size A Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

DELIVERY: Intex Size B Filters 29005 are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: 29005 Index B Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur..

PRODUCT INFO:

Intex Size B Filters for Metal Frame Pools & Easy Set Pools should be changed very regularly, in fact Intex suggest every 2 weeks during the Summer. A clean swimming pool filter helps keep your water crystal clear and will mean using fewer chemicals.

Even if an Intex Size B filter is washed out and looks clean the microscopic holes are blocked, making the Intex filter totally useless. A blocked Intex Pool cartridge filter will increase the pressure inside the pump and quickly wear out the motor shortening the lifespan of the pump dramatically.

Replacing the Intex Size B Pool Filter Cartridges as often as required could be very expensive if you had to buy them at retail prices. At World Of Poolswe can offer Intex Branded Filters at below trade prices and you do not have to buy in bulk.

Size B Filters should be used with the following Intex Pumps:

56634 / 5662

DELIVERY: H Filters from Intex are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Type H Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Intex Size H Filter

Intex Filters for Metal Frame Pools & Easy Set Pools should be changed very regularly, in fact Intex suggest every 2 weeks during the Summer. A clean swimming pool filter helps keep your water crystal clear and will mean using fewer chemicals.

Even if an Intex filter is washed out and looks clean the microscopic holes are blocked, making the Intex filter totally useless. A blocked Intex Pool cartridge filter will increase the pressure inside the pump and quickly wear out the motor shortening the lifespan of the pump dramatically.

Replacing the Intex Pool Filters as often as required could be very expensive if you had to buy them at retail prices. At H2oFun we can offer Intex Branded Filters at below trade prices and you do not have to buy in bulk.

designed for use with Intex filter pump item number: 28601/28602

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.


When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Commercial Pool Pumps below 5.5HP is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Commercial Pool Pumps Up To 5.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

This Inverter Variable Speed Drive is Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 5.5HP (4.1kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £12,178 per year running costs

Cost of unit £972.00

Suggested Cost of installation £350.00

Total cost £1322.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £8914 Per Annum.

Cost saving is £272 per month and 5 months payback on purchase & installation costs.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.


When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Commercial Pool Pumps below 7.5HP is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Commercial Pool Pumps Up To 7.5HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

This Inverter Variable Speed Drive is Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 7.5HP (5.6kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £16,633 per year running costs

Cost of unit £1566.00

Suggested Cost of installation £350.00

Total cost £1916.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £12,175 Per Annum.

Cost saving of £4458 Per Annum is £371 per month saving and just over 5 months for return on investment and payback on purchase & installation cost.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.


When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Commercial Pool Pumps below 10HP is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Commercial Pool Pumps Up To 10HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

This Inverter Variable Speed Drive is Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 10HP (7.46kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £22,158 per year running costs

Cost of unit £1764.00

Suggested Cost of installation £350.00

Total cost £2,114.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £16,220 Per Annum.

Cost saving of £5938 Per Annum is £494 per month saving and just over 4 months for return on investment and payback on purchase & installation cost.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.


When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Commercial Pool Pumps below 15HP is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Commercial Pool Pumps Up To 15HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

This Inverter Variable Speed Drive is Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 15HP (11.2kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- £33,237 per year running costs

Cost of unit £2025.00

Suggested Cost of installation £350.00

Total cost £2,375.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £27,299 Per Annum.

Cost saving of £8907 Per Annum is £742 per month saving and just over 3 months for return on investment and payback on purchase & installation cost.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.


When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.

PRODUCT INFO:

Inverter Variable Speed Drive For Commercial Pool Pumps below 3HP is a solution designed to greatly reduce the running costs of commercial pool circulation pumps and improve the efficiency of swimming pool filtration.

Swimming pool pumps invariably run at higher flow rates than necessary, to allow for the power needed when backwashing. Inverter Variable Speed Drive For Commercial Pool Pumps Up To 3HP Inverter technology enables you to control pump flow-rates during the filtration period, which is over 95% of the time.

Swimming pool pump energy conservation is evolving, it’s now possible to reduce the running costs of your commercial pool pump by as much as 33% simply by reducing your pump speed to 80% for 95% of the time and the running it at 100% power while backwashing for the remaining 5% of the time.

This Inverter Variable Speed Drive is Suitable For The Following Pumps:

BP Range, BPH Range, Calpeda, Modern, Hurricane, Giant, Great Giant, Hydrostar, Columbia, Aral, Maxim, Shark, Speck, Hayward, Waterco, Starite and DAB

Call us on 01322 554 870 for us to assist choosing the correct model.

How does it work?

Example of cost saving Pump size 2.5HP (1.865kW) 3 phase pump.

Operating time 24 hours / 7 days a week / 52 weeks- Running Costs £5,540 Per Year

Cost of unit £891.00

Suggested Cost of installation £350.00

Total cost £1241.00

Based on electricity at 34p per kWh

The cost of running the pump at 80% of the speed for 95% of time and 100% of speed for 5% (backwash) is £4055 Per Annum.

Cost saving is £123.75 per month and 10 months payback on installation.

Understanding Pump Affinity Laws

Understanding pump affinity laws will allow you to explain, demonstrate and calculate how a change in motor speed impacts;

• flow rates against resistance

• power consumption

• operating costs

1. The change in flow is proportionate (equal) to the change in speed. If we halve the speed we halve the flow

2. The change in pressure is equal to the speed change factor squared. Operating pressure will be 1/4 of the original pressure

3. The change in power consumption is equal to the speed change factor cubed. Power consumption will be 1/8 the original consumption

As an example, if we take a pump with the following characteristics:

• Motor speed: 2850 rpm

• Flow rate: 302 lpm

• Pressure: 8 metres head

• Power input: 983 Watts

We set the low speed at 1900 rpm – a reduction factor of 0.67 - 1900 ÷ 2850 = 0.67 Applying the factor 0.67 to all pump affinity laws we can determine the pumps operating characteristics at the new speed on 1900 rpm.

1. The change in flow is proportionate (equal) to the change in speed. 302 x 0.67 = 202 lpm

2. The change in pressure is equal to the speed change factor squared. 8 x 0.67 x 0.67 = 3.6 metres head

3. The change in power consumption is equal to the speed change factor cubed. 983 x 0.67 x 0.67 x 0.67 = 295 watts

Therefore, the pump has these new low speed operating characteristics:

• Motor speed: 1900 rpm

• Flow rate: 202 lpm

• Pressure: 3.6 metres head

• Power input: 295 watts

If you would like help choosing the correct Inverter Variable Speed Drive For Your Pool, Please Call Us On 01322 554 870

In stock for fast delivery

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery.

PRODUCT INFO:

Lacron Side Mount Sand Filter

Lacron LRS side mounted filter are made from extremely hard wearing glass reinforced polyester (GRP). These filters are ideal for medium to large amounts of water; they come complete with a large clear lid (204mm) for easy sight view of the inflow diffuser. The tank alone comes with a 5 years warranty and UV corrosion resistant GRP free.

The Lacron LRS Filter also comes complete with a very strong a robust 6-port multiport valve, please find listed below on how each function operates.

Filter –This is the main position that you will be using when the pump is on and circulating. The water is directed through the filter media (i.e. sand/glass) from the top. After filtering dirt and debris it is then directed back the pool through the return lines to your pool.

Backwash – This function allows for the cleaning of the inside of your filter tank. Your filter can hold only so much debris before it starts spitting it back. As a general rule of thumb, you should backwash your filter once a week during the summer season or when the filter pressure rises 8-10 pounds over the clean starting pressure of your system. When backwashing the water, the water forces the debris out of the backwash port where it can be discarded in the correct and safe manor. When backwashing you should keep on backwash until the running water turns clear, this should take 1-2 minutes.

Rinse – This function is used after backwashing to clean plumbing lines and the multi-port valve of any remaining dirt or debris. Rinse will also settle the sand properly to provide a good filter base.

Waste – Sometimes you will need to lower the water level because of heavy rains. The pump will force the water through the valve (bypassing the filter tank for a more direct line) and out the backwash/waste line.

Re-circulate – This function allows for the water to by-pass the filter by just going through the multi-port valve and returning back. You would only use the function when you need to do maintenance/repair to the tank

Closed – Be careful when using this function because this position will not allow any water to flow through the valve. If you are using this function because the system is higher/lower than the water level while performing maintenance, be sure to change the valve back before starting your system.

Winter – Used only when the system is winterized. This position is between two other functions and allows water to flow in all directions. This is used to prevent water being trapped in the valve that could freeze and crack the multi-port valve. This also saves wear and tear on the spider gasket inside the valve. The 30" and 42" filter is a popular choice for commercial applications, this filter needs to be delivered by freight and the additional freight costs are included in the price

DELIVERY: We aim to send all products out on a next working day service but all standard deliveries will be within 5 working days

RETURNS: This product can be returned in original packaging, suitable for resale, within 14 days from date of delivery.

PRODUCT INFO:

Lacron Side Mount Sand Filter

Lacron is an established British Manufacturer specialising in quality pool products. Clean, sparkling water is a very important swimming pool feature, and can be achieved using a high end sand filter such as the Lacron. A lacron filter is the most efficient way to ensure perfect water quality for years to come. The Lacron Sand Filters come complete with tank, face fittings, multiport valve and gauge. They can be used with standard 16/30-grade silica filter sand. Lacron filters are perfect for residential pools from small above ground pools, through to larger inground domestic installations. The larger filters are primarily designed for light commercial applications. The main tank structure is manufactured from extremely hard wearing glass reinforced polyester (GRP). LSR filters are tested to 4 Bar and are designed to operate at a maximum pressure of 2.5 Bar.

DELIVERY: MSF Mega Sand Filters are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Mega MFS Sand Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Flotide MFS Side Mount Sand Filter

Made of premium grade high density polyethylene. The Mega line offers heavy duty operation and sustains a high working temperature. Only first class virgin high density polyethylene raw materials made by Phillips Chemicals are used in the production of our filters. The unique twist lock is designed for ease of servicing and maintenance of the filter.

The Mega S Series Side Mount Sand Filter can be used with standard 16/30-grade silica filter sand or glass media

Mega Side mount sand filters are designed to operate at a maximum pressure of 2.5 Bar.

17" requires 40kg media, suitable for pools upto 38 cubic meters

20" requires 70kg media, suitable for pools upto 52 cubic meters

24" requires 125kg media, suitable for pools upto 70 cubic meters

27" requires 185kg media, suitable for pools upto 100 cubic meters

DELIVERY: Mega MFV Sand Filters can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

Our returns address is Giraffe Enterprises Ltd, Bexley Garden Centre, 57 North Cray Road, Sidcup, Kent. DA14 5EU. Tel: 01322 554 870

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

RETURNS: Mega MFV Sand Filters are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

PRODUCT INFO:

Mega MFV Top Mount Sand Filter is made of premium grade high density polyethylene. The Mega line offers heavy duty operation and sustains a high working temperature. Only first class virgin high density polyethylene raw materials made by Phillips Chemicals are used in the production of our filters. The unique twist lock is designed for ease of servicing and maintenance of the filter.

The Mega S Series Side Mount Sand Filter can be used with standard 16/30-grade silica filter sand or glass media

Mega Side mount sand filters are designed to operate at a maximum pressure of 2.5 Bar.

17" requires 40kg media, suitable for pools upto 37 cubic meters

20" requires 70kg media, suitable for pools upto 52 cubic meters

24" requires 125kg media, suitable for pools upto 70 cubic meters

27" requires 185kg media, suitable for pools upto 100 cubic meters

DELIVERY: Flotide Pump Filter Combos are sent out via a specialist carrier. Delivery will normally take between 1-3 days, but please allow 5 working days in some extreme cases.

RETURNS: Flotide Pump Filter Combos can be returned to us, in compliance with the Consumer Contracts Regulations, unused and in their original packaging, suitable for resale, within 14 days from date of delivery. Returns should always be sent via "Signed For" carrier or postal service.

When a return is received back into our warehouse our returns department confirm that everything is present and that the item is in its original condition, to make sure it is eligible for a refund. We will process the refund normally on the same day we take them in, but please allow up to a maximum of 14 working days for the money to reach your bank or credit card. It is unlikely to take this long but due to reasons such as bank delays or errors, this may occasionally occur.

PRODUCT INFO:

Flotide FSP Pump & Filter Set

A high quality, above ground swimming pool pump and filter system for a fraction of the cost of a Brand Name combo, but without compromising on quality.

The Swimming Pool Sand Filter & Pump combo is made up of a blow moulded reinforced filter tank for strength and durability. The very reliable pumps are centrifugal and are also very high quality but without the high price. Ideal for above ground pools, this pump filter set comes with a RCD differential plug

These swimming pool sand filter & pump kits will provide years of reliable service

Number Of Bags Of Media Sand or Glass Required

13" Sand Filter - 20kg Sand
16" Sand Filter - 35kg Sand
18" Sand Filter - 45kg Sand
20" Sand Filter - 85kg Sand
